Gathering Metrics with Grafana Alloy and Mimir across Multiple Sites

In this guide, we will learn how to deploy a centralized observability architecture using n2x.io, Grafana Mimir, and Grafana Alloy. This architecture collects metrics from a physical server and two Kubernetes clusters (one private and one cloud-based) using Grafana Alloy, sending all data to a single Mimir backend.

Here is the high-level overview of our setup architecture:

Architecture
Architecture

In our setup, we will be using the following components:

  • Grafana is an analytics and interactive visualization platform. For more info please visit the Grafana Documentation
  • Grafana Mimir is an open-source, horizontally scalable, highly available, multi-tenant time series database designed for long-term storage of Prometheus and OpenTelemetry metrics. It enables users to ingest metrics, run queries, set up recording and alerting rules, and manage data across multiple tenants. For more information, please visit the Grafana Mimir Documentation.
  • Grafana Alloy is an open-source, vendor-neutral distribution of the OpenTelemetry Collector. It enables the collection, processing, and export of telemetry data—including metrics, logs, traces, and profiles—through programmable pipelines. Alloy supports both push and pull data collection methods and integrates seamlessly with backends like Grafana Mimir, Loki, and Tempo. For more information, please visit the Grafana Alloy Documentation.
  • n2x-node is an open-source agent that runs on the machines you want to connect to your n2x.io network topology. For more info please visit n2x.io Documentation.

Before you begin

In order to complete this tutorial, you must meet the following requirements:

  • Access to at least two Kubernetes clusters, version v1.34.x or greater.
  • A n2x.io account created and one subnet with 10.254.1.0/24 prefix.
  • Installed n2xctl command-line tool, version v0.0.4or greater.
  • Installed kubectl command-line tool, version v1.34.x or greater.
  • Installed helm command-line tool, version v3.17.3 or greater.

Note

Please note that this tutorial uses a Linux OS with an Ubuntu 24.04 (Noble Numbat) with amd64 architecture.

Step-by-step Guide

Step 1: Install Grafana Mimir on a private cluster

Setting your context to Kubernetes Private cluster:

kubectl config use-context k8s-private

We are going to deploy a Grafana Mimir on a k8s-private cluster using the official Helm chart:

  1. First, let’s add the following Helm repo:

    helm repo add grafana https://grafana.github.io/helm-charts

  2. Update all the repositories to ensure helm is aware of the latest versions:

    helm repo update

  3. Go ahead and deploy Grafana Mimir into your Kubernetes cluster by executing the following command:

    helm install mimir grafana/mimir-distributed -n monitoring --create-namespace --version 6.0.3 --wait --timeout 400s

  4. Run the following command to check the Grafana Mimir Pod is in Running state:

    kubectl -n monitoring get pods

    NAME                                       READY   STATUS      RESTARTS   AGE
mimir-alertmanager-0                       1/1     Running     0          2m46s
mimir-compactor-0                          1/1     Running     0          2m46s
mimir-distributor-64798c7cff-x48cq         1/1     Running     0          2m46s
mimir-gateway-796b4794b5-ptj9q             1/1     Running     0          2m46s
mimir-ingester-zone-a-0                    1/1     Running     0          2m46s
mimir-ingester-zone-b-0                    1/1     Running     0          2m46s
mimir-ingester-zone-c-0                    1/1     Running     0          2m46s
mimir-kafka-0                              1/1     Running     0          2m46s
mimir-make-minio-buckets-5.4.0-2sc9t       0/1     Completed   0          2m46s
mimir-minio-67b56f6cc9-vpmmx               1/1     Running     0          2m46s
mimir-overrides-exporter-677f46569-4kdxh   1/1     Running     0          2m46s
mimir-querier-8bf9999fd-vmbpp              1/1     Running     0          2m46s
mimir-querier-8bf9999fd-z2x88              1/1     Running     0          2m46s
mimir-query-frontend-f94fd5b87-5k9d9       1/1     Running     0          2m46s
mimir-query-scheduler-868df8b8db-88dn7     1/1     Running     0          2m46s
mimir-query-scheduler-868df8b8db-9ztsr     1/1     Running     0          2m46s
mimir-rollout-operator-7ccfb898b-l6rd4     1/1     Running     0          2m46s
mimir-ruler-6d6b8ff687-l6f78               1/1     Running     0          2m46s
mimir-store-gateway-zone-a-0               1/1     Running     0          2m46s
mimir-store-gateway-zone-b-0               1/1     Running     0          2m46s
mimir-store-gateway-zone-c-0               1/1     Running     0          2m46s

Step 2: Connect Grafana Mimir to our n2x.io network topology

Grafana Mimir needs to have connectivity with Grafana Alloy agents so that they can push metrics.

To connect a new kubernetes service to the n2x.io subnet, you can execute the following command:

n2xctl k8s svc connect

The command will typically prompt you to select the Tenant, Network, and Subnet from your available n2x.io topology options. Then, you can choose the service you want to connect by selecting it with the space key and pressing enter. In this case, we will select monitoring: mimir-gateway.

Grafana Alloy Workload Connected

Now we can access the n2x.io WebUI to verify that the Grafana Mimir are correctly connected to the subnet.

Check Grafana Mimir in WebUI

Step 3: Install Grafana Alloy on a private cluster

Setting your context to Kubernetes Private cluster:

kubectl config use-context k8s-private

We are going to deploy a Grafana Alloy on a k8s-private cluster using the official Helm chart:

  1. First, let’s add the following Helm repo:

    helm repo add grafana https://grafana.github.io/helm-charts

  2. Update all the repositories to ensure helm is aware of the latest versions:

    helm repo update

  3. Create the ConfigMap alloy-config.yaml with this information:

    apiVersion: v1
kind: ConfigMap
metadata:
  name: alloy-config
  namespace: monitoring
data:
  config.alloy: |
    logging {
      level  = "info"
      format = "logfmt"
    }

    prometheus.remote_write "mimir" {
      external_labels = {
        infra = "k8s-private",
      }

      endpoint {
        url = "http://mimir-gateway.monitoring.svc:80/api/v1/push"

        headers = {
          "X-Scope-OrgID" = "monitoring",
        }

        remote_timeout = "30s"
        send_exemplars = true

        queue_config {
          capacity = 5000
          max_shards = 5
        }
      }
    }

    prometheus.exporter.unix "host" {
      rootfs_path = "/host/root"
      procfs_path = "/host/proc"
      sysfs_path  = "/host/sys"
    }

    prometheus.scrape "node" {
      targets         = prometheus.exporter.unix.host.targets
      job_name        = "node"
      scrape_interval = "30s"
      forward_to      = [prometheus.remote_write.mimir.receiver]
    }

    discovery.kubernetes "nodes" {
      role = "node"
    }

    discovery.relabel "cadvisor" {
      targets = discovery.kubernetes.nodes.targets

      rule {
        source_labels = ["__address__"]
        regex         = "([^:]+)(?::\\d+)?"
        replacement   = "$1:10250"
        target_label  = "__address__"
      }

      rule {
        source_labels = ["__meta_kubernetes_node_name"]
        target_label  = "node"
      }

      rule {
        replacement  = "/metrics/cadvisor"
        target_label = "__metrics_path__"
      }
    }

    prometheus.scrape "cadvisor" {
      targets           = discovery.relabel.cadvisor.output
      job_name          = "cadvisor"
      scheme            = "https"
      bearer_token_file = "/var/run/secrets/kubernetes.io/serviceaccount/token"
      scrape_interval   = "30s"

      tls_config {
        insecure_skip_verify = true
      }

      forward_to = [prometheus.remote_write.mimir.receiver]
    }

    About alloy-config ConfigMap:

    • Remote write to Mimir: The prometheus.remote_write "mimir" block sends all metrics to http://mimir-gateway.monitoring.svc:80/api/v1/push, adds the label infra = "k8s-private", and uses the header X-Scope-OrgID = "monitoring" to identify the tenant.
    • Host metrics: prometheus.exporter.unix "host" exposes system metrics using the mounted paths (/host/root, /host/proc, /host/sys), and the prometheus.scrape "node" scrape job collects them every 30s with job_name = "node" and forwards them to Mimir.
    • Discovery and cAdvisor metrics: discovery.kubernetes "nodes" discovers cluster nodes, discovery.relabel "cadvisor" adjusts the address, labels, and path for the kubelet at :10250/metrics/cadvisor, and prometheus.scrape "cadvisor" scrapes container metrics every 30s and sends them to Mimir as well.
    • Access to the Kubernetes API: The cAdvisor scrape uses the ServiceAccount token (bearer_token_file) and a TLS configuration with insecure_skip_verify = true, which is suitable for lab environments but should be hardened for production.

  4. Create the configuration file values.yaml with this information:

    crds:
  create: false

alloy:
  configMap:
    create: false
    name: alloy-config
    key: config.alloy

  securityContext:
    privileged: false
    runAsUser: 0
    runAsNonRoot: false
    capabilities:
      drop:
        - ALL

  enableReporting: false

  mounts:
    extra:
      - name: rootfs
        mountPath: /host/root
        readOnly: true
        mountPropagation: HostToContainer
      - name: sys
        mountPath: /host/sys
        readOnly: true
        mountPropagation: HostToContainer
      - name: proc
        mountPath: /host/proc
        readOnly: true
        mountPropagation: HostToContainer

  resources:
    limits:
      memory: 256Mi
    requests:
      cpu: 100m
      memory: 128Mi

  extraArgs:
    - --stability.level=generally-available

serviceAccount:
  create: true
  name: alloy-sa

rbac:
  create: true

controller:
  type: daemonset

  hostNetwork: true
  hostPID: true
  dnsPolicy: ClusterFirstWithHostNet

  volumes:
    extra:
      - name: rootfs
        hostPath:
          path: /
      - name: sys
        hostPath:
          path: /sys
      - name: proc
        hostPath:
          path: /proc

  tolerations:
    - effect: NoSchedule
      key: node-role.kubernetes.io/control-plane
      operator: Exists
    - effect: NoSchedule
      key: node-role.kubernetes.io/master
      operator: Exists

    About Alloy Helm values:

    • CRDs and config: crds.create: false and alloy.configMap.create: false indicate that CRDs are not managed by this chart and Alloy will load its configuration from an existing ConfigMap named alloy-config with key config.alloy.
    • Security context: Alloy runs as root (runAsUser: 0, runAsNonRoot: false) but without extra Linux capabilities (capabilities.drop: [ALL]) and privileged: false, balancing host access needs with a reduced privilege set.
    • Host filesystem mounts: Extra mounts (/host/root, /host/sys, /host/proc) are provided via mounts.extra and backed by hostPath volumes in the controller section so Alloy can read host and kernel metrics while keeping mounts read-only.
    • Controller and scheduling: The controller runs as a DaemonSet with hostNetwork: true, hostPID: true, and dnsPolicy: ClusterFirstWithHostNet, ensuring one Alloy instance per node with direct access to host networking and process namespaces. Tolerations allow scheduling on control-plane/master nodes as well.
    • Service account and RBAC: A dedicated ServiceAccount (alloy-sa) and RBAC resources are created, enabling Alloy to access Kubernetes APIs required for discovery and scraping.
    • Resources and runtime options: Resource requests/limits are modest (100m CPU, 128–256Mi memory) and extraArgs sets --stability.level=generally-available, aligning with Alloy’s recommended stability level.

  5. Go ahead and deploy Grafana Alloy into your Kubernetes cluster by executing the following command:

    Apply Grafana Alloy ConfigMap:

    kubectl apply -f alloy-config.yaml

    Deploy Grafana Alloy with Helm:

    helm install alloy grafana/alloy -f values.yaml -n monitoring --create-namespace --version 1.4.0 --wait --timeout 400s

  6. Run the following command to check the alloy Pod is in Running state:

    kubectl get pods -n monitoring -l app.kubernetes.io/instance=alloy

    NAME          READY   STATUS    RESTARTS   AGE
alloy-cptdc   2/2     Running   0          56s
alloy-fm2ln   2/2     Running   0          56s

Step 4: Install Grafana Alloy on a public cluster

Setting your context to Kubernetes public cluster:

kubectl config use-context k8s-public

We are going to deploy a Grafana Alloy on a k8s-public cluster using the official Helm chart:

  1. First, let’s add the following Helm repo:

    helm repo add grafana https://grafana.github.io/helm-charts

  2. Update all the repositories to ensure helm is aware of the latest versions:

    helm repo update

  3. Create the ConfigMap alloy-config.yaml with this information:

    apiVersion: v1
kind: ConfigMap
metadata:
  name: alloy-config
  namespace: monitoring
data:
  config.alloy: |
    logging {
      level  = "info"
      format = "logfmt"
    }

    prometheus.remote_write "mimir" {
      external_labels = {
        infra = "k8s-public",
      }

      endpoint {
        url = "http://<MIMIR_IP_ADDRESS>:80/api/v1/push"

        headers = {
          "X-Scope-OrgID" = "monitoring",
        }

        remote_timeout = "30s"
        send_exemplars = true

        queue_config {
          capacity = 5000
          max_shards = 5
        }
      }
    }

    prometheus.exporter.unix "host" {
      rootfs_path = "/host/root"
      procfs_path = "/host/proc"
      sysfs_path  = "/host/sys"
    }

    prometheus.scrape "node" {
      targets         = prometheus.exporter.unix.host.targets
      job_name        = "node"
      scrape_interval = "30s"
      forward_to      = [prometheus.remote_write.mimir.receiver]
    }

    discovery.kubernetes "nodes" {
      role = "node"
    }

    discovery.relabel "cadvisor" {
      targets = discovery.kubernetes.nodes.targets

      rule {
        source_labels = ["__address__"]
        regex         = "([^:]+)(?::\\d+)?"
        replacement   = "$1:10250"
        target_label  = "__address__"
      }

      rule {
        source_labels = ["__meta_kubernetes_node_name"]
        target_label  = "node"
      }

      rule {
        replacement  = "/metrics/cadvisor"
        target_label = "__metrics_path__"
      }
    }

    prometheus.scrape "cadvisor" {
      targets           = discovery.relabel.cadvisor.output
      job_name          = "cadvisor"
      scheme            = "https"
      bearer_token_file = "/var/run/secrets/kubernetes.io/serviceaccount/token"
      scrape_interval   = "30s"

      tls_config {
        insecure_skip_verify = true
      }

      forward_to = [prometheus.remote_write.mimir.receiver]
    }

    About alloy-config ConfigMap (k8s-public):

    • Purpose: Defines the Grafana Alloy configuration on the k8s-public cluster to collect node and container metrics and send them to the central Grafana Mimir instance over the n2x.io overlay network.
    • Remote write to Mimir: The prometheus.remote_write "mimir" block sends all metrics to http://<MIMIR_IP_ADDRESS>:80/api/v1/push, adds the label infra = "k8s-public", and uses the header X-Scope-OrgID = "monitoring" to identify the tenant.
    • Host metrics: prometheus.exporter.unix "host" exposes host-level system metrics using the mounted paths (/host/root, /host/proc, /host/sys), and the prometheus.scrape "node" job scrapes them every 30s with job_name = "node" and forwards them to Mimir.
    • Discovery and cAdvisor metrics: discovery.kubernetes "nodes" discovers Kubernetes nodes, while discovery.relabel "cadvisor" rewrites the target address to :10250, sets the node label, and configures the scrape path to /metrics/cadvisor. The prometheus.scrape "cadvisor" job then scrapes container metrics over HTTPS every 30s and sends them to Mimir as well.
    • Kubernetes API access: The cAdvisor scrape uses the ServiceAccount token (bearer_token_file) and a TLS config with insecure_skip_verify = true, which is acceptable for lab environments but should be hardened for production deployments.

    Info

    You can find the IP address assigned to mimir-gateway service by navigating to the n2x.io WebUI and going to the Network Topology section. Locate the mimir-gateway service within your subnet, and you’ll see its assigned IP address in the IPAM table.

  4. Create the configuration file values.yaml with this information:

    crds:
  create: false

alloy:
  configMap:
    create: false
    name: alloy-config
    key: config.alloy

  securityContext:
    privileged: false
    runAsUser: 0
    runAsNonRoot: false
    capabilities:
      drop:
        - ALL

  enableReporting: false

  mounts:
    extra:
      - name: rootfs
        mountPath: /host/root
        readOnly: true
        mountPropagation: HostToContainer
      - name: sys
        mountPath: /host/sys
        readOnly: true
        mountPropagation: HostToContainer
      - name: proc
        mountPath: /host/proc
        readOnly: true
        mountPropagation: HostToContainer

  resources:
    limits:
      memory: 256Mi
    requests:
      cpu: 100m
      memory: 128Mi

  extraArgs:
    - --stability.level=generally-available

serviceAccount:
  create: true
  name: alloy-sa

rbac:
  create: true

controller:
  type: daemonset

  hostNetwork: true
  hostPID: true
  dnsPolicy: ClusterFirstWithHostNet

  volumes:
    extra:
      - name: rootfs
        hostPath:
          path: /
      - name: sys
        hostPath:
          path: /sys
      - name: proc
        hostPath:
          path: /proc

    About Alloy Helm values (k8s-public):

    • CRDs and config: crds.create: false and alloy.configMap.create: false mean the chart does not manage CRDs and Alloy loads its configuration from an existing ConfigMap named alloy-config with key config.alloy.
    • Security context: Alloy runs as root (runAsUser: 0, runAsNonRoot: false) with privileged: false and all Linux capabilities dropped (capabilities.drop: [ALL]), providing the required host access with a reduced privilege set.
    • Host filesystem mounts: Additional mounts (/host/root, /host/sys, /host/proc) are defined under mounts.extra and backed by hostPath volumes so Alloy can read host and kernel metrics while keeping these mounts read-only.
    • Service account and RBAC: A dedicated ServiceAccount (alloy-sa) and RBAC resources are created, allowing Alloy to interact with the Kubernetes API for discovery and scraping.
    • Controller and scheduling: The controller runs as a DaemonSet with hostNetwork: true, hostPID: true, and dnsPolicy: ClusterFirstWithHostNet, ensuring one Alloy instance per node with direct access to host networking and process namespaces. Unlike the private cluster configuration, no tolerations are set, so Alloy will not be scheduled onto control-panel/master nodes in the public cluster.
    • Resources and runtime options: Resource requests/limits are modest (100m CPU, 128–256Mi memory) and extraArgs sets --stability.level=generally-available, aligning with Alloy’s recommended stability level.

  5. Go ahead and deploy Grafana Alloy into your Kubernetes cluster by executing the following command:

    Create monitoring namespace:

    kubectl create namespace monitoring

    Apply Grafana Alloy ConfigMap:

    kubectl apply -f alloy-config.yaml

    Deploy Grafana Alloy with Helm:

    helm install alloy grafana/alloy -f values.yaml -n monitoring --create-namespace --version 1.4.0 --wait --timeout 400s

  6. Run the following command to check the alloy Pod is in Running state:

    kubectl get pods -n monitoring -l app.kubernetes.io/instance=alloy

    NAME          READY   STATUS    RESTARTS   AGE
alloy-tmq58   2/2     Running   0          3m9s

Step 5: Connect Grafana Alloy to the n2x.io network topology in public cluster

Setting your context to Kubernetes Public cluster:

kubectl config use-context k8s-public

To connect a new kubernetes workloads to the n2x.io subnet, you can execute the following command:

n2xctl k8s workload connect

The command will typically prompt you to select the Tenant, Network, and Subnet from your available n2x.io topology options. Then, you can choose the workloads you want to connect by selecting it with the space key and pressing enter. In this case, we will select monitoring: alloy.

Node-Exporter Workload Connected

Now we can access the n2x.io WebUI to verify that the alloy workloads are correctly connected to the subnet.

Check Node-Exporter in WebUI

Step 6: Connect server01 to our n2x.io network topology

Now we need to connect server01 to our n2x.io network topology so that Grafana Alloy can send metrics to Grafana Mimir.

Adding a new node in a subnet with n2x.io is very easy. Here's how:

New Node

  1. Head over to the n2x WebUI and navigate to the Network Topology section in the left panel.
  2. Click the Add Node button and ensure the new node is placed in the same subnet as the Grafana Mimir.
  3. Assign a name and description for the new node.
  4. Click Add New Connected Node to Subnet.

Here, we can select the environment where we are going to install the n2x-node agent. In this case, we are going to use Linux:

Node Setup

Run the script on server01 terminal and check if the service is running with the command:

systemctl status n2x-node

You can use ip addr show dev n2x0 command on server01 to display the IP address assigned to this node:

Check Node IP

Step 7: Install Grafana Alloy in server01

We are going to deploy a Grafana Alloy on server01 using the official Grafana Alloy Docker image:

  1. Create the configuration file config.alloy with this information:

    logging {
  level  = "info"
  format = "logfmt"
}

prometheus.remote_write "mimir" {
  external_labels = {
    infra     = "dc-private",
  }

  endpoint {
    url = "http://<MIMIR_IP_ADDRESS>:80/api/v1/push"

    headers = {
      "X-Scope-OrgID" = "monitoring",
    }

    remote_timeout = "30s"
    send_exemplars = true
  }
}

prometheus.exporter.unix "host" {
  rootfs_path = "/rootfs"
  procfs_path = "/host/proc"
  sysfs_path  = "/sys"
}

prometheus.exporter.cadvisor "dockerd" {
  docker_host      = "unix:///var/run/docker.sock"
  storage_duration = "5m"
}

prometheus.scrape "host" {
  targets         = prometheus.exporter.unix.host.targets
  job_name        = "node"
  scrape_interval = "30s"
  forward_to      = [prometheus.remote_write.mimir.receiver]
}

prometheus.scrape "containers" {
  targets         = prometheus.exporter.cadvisor.dockerd.targets
  job_name        = "cadvisor"
  scrape_interval = "30s"
  forward_to      = [prometheus.remote_write.mimir.receiver]
}

    About Alloy configuration (dc-private server):

    • Logging: Sets Alloy logging to level = "info" and format = "logfmt", providing structured, human-readable logs.
    • Remote write to Mimir: The prometheus.remote_write "mimir" block sends all metrics to http://<MIMIR_IP_ADDRESS>:80/api/v1/push, adds the label infra = "dc-private" to identify the data center site, and uses the header X-Scope-OrgID = "monitoring" for tenant identification. It also configures a 30s remote timeout and enables exemplars (send_exemplars = true).
    • Host metrics exporter: prometheus.exporter.unix "host" exposes host-level system metrics using the mounted filesystem paths (/rootfs, /host/proc, /sys), suitable for a bare-metal or VM environment.
    • Container metrics exporter (cAdvisor): prometheus.exporter.cadvisor "dockerd" scrapes container metrics directly from the local Docker engine via unix:///var/run/docker.sock, with a storage_duration of 5m.
    • Scrape jobs:
    • prometheus.scrape "host" scrapes the host exporter targets every 30s with job_name = "node" and forwards the metrics to Mimir.
    • prometheus.scrape "containers" scrapes the cAdvisor exporter targets every 30s with job_name = "cadvisor" and also forwards the metrics to Mimir.
    • Overall purpose: Collects both host and container metrics from the dc-private server and ships them to the central Grafana Mimir backend, keeping this site distinguishable via the infra label.

    Info

    You can find the IP address assigned to mimir-gateway service by navigating to the n2x.io WebUI and going to the Network Topology section. Locate the mimir-gateway service within your subnet, and you’ll see its assigned IP address in the IPAM table.

  2. Create the docker-compose.yaml file with this information:

    services:
  alloy:
    container_name: alloy
    image: grafana/alloy:v1.10.1
    command:
      - run
      - --server.http.listen-addr=127.0.0.1:12345
      - --storage.path=/var/lib/alloy
      - /etc/alloy/config.alloy
    network_mode: host
    pid: host
    privileged: true
    restart: always
    volumes:
      - ./config.alloy:/etc/alloy/config.alloy:ro
      - /:/rootfs:ro,rslave
      - /etc/hostname:/etc/hostname:ro
      - /proc:/host/proc:ro
      - /sys:/sys:ro
      - /dev/disk:/dev/disk:ro
      - /var/run/docker.sock:/var/run/docker.sock:ro

  3. Now, we can start Grafana Alloy by running the following command:

    docker compose up -d

    We can check the alloy container is up and running with the following command:

    docker compose ps

    NAME      IMAGE                   COMMAND                  SERVICE   CREATED              STATUS              PORTS
alloy     grafana/alloy:v1.10.1   "/bin/alloy run --se…"   alloy     About a minute ago   Up About a minute

  4. We can verify that alloy is running properly and exposing metrics with the following command:

    docker compose logs

    ...
alloy  | ts=2025-12-01T15:41:28.367299765Z level=info msg="peers changed" service=cluster peers_count=1 min_cluster_size=0 peers=server01
alloy  | ts=2025-12-01T15:41:28.367770305Z level=info msg="now listening for http traffic" service=http addr=127.0.0.1:12345
alloy  | ts=2025-12-01T15:41:44.295403898Z level=info msg="Done replaying WAL" component_path=/ component_id=prometheus.remote_write.mimir subcomponent=rw remote_name=41a358 url=http://10.254.1.235:80/api/v1/push duration=15.968958357s

Step 8: Installing Grafana in Kubernetes private cluster worker node

Once our metrics are stored in Grafana Mimir, we'll need a way to analyze them. To achieve this, we'll deploy Grafana, a powerful visualization tool, on our private Kubernetes cluster using Helm:

Setting your context to Kubernetes Private cluster:

kubectl config use-context k8s-private

We are going to deploy a Grafana on a k8s-private cluster using the official Helm chart:

  1. First, let’s add the following Helm repo:

    helm repo add grafana https://grafana.github.io/helm-charts

  2. Update all the repositories to ensure helm is aware of the latest versions:

    helm repo update

  3. Create the configuration file values.yaml with this information:

    datasources:
  datasources.yaml:
    apiVersion: 1
    datasources:
      - name: Mimir
        uid: mimir
        type: prometheus
        access: proxy
        isDefault: true
        editable: true
        url: http://mimir-gateway.monitoring.svc:80/prometheus
        jsonData:
          httpMethod: POST
          timeInterval: "30s"
          prometheusType: Mimir
          prometheusVersion: "2.8.0"
          httpHeaderName1: "X-Scope-OrgID"
        secureJsonData:
          httpHeaderValue1: "monitoring"

  4. Install Grafana version 9.3.2 with default configuration in the monitoring namespace:

    helm install grafana grafana/grafana -n monitoring --create-namespace --version 9.3.2 -f values.yaml

  5. The Grafana pod should be up and running:

    kubectl -n monitoring get pod -l app.kubernetes.io/name=grafana

    NAME                       READY   STATUS    RESTARTS   AGE
grafana-7f5786dbfc-9srz9   1/1     Running   0          2m46s

  6. We can get the Grafana admin user password by running:

    kubectl get secret --namespace monitoring grafana -o jsonpath="{.data.admin-password}" | base64 --decode ; echo

All the deployments now are completed. It is time we set up our Grafana. We can port-forward the Grafana service and access the Grafana dashboard directly from http://localhost:8080/:

kubectl -n monitoring port-forward svc/grafana 8080:80

Info

You can login with admin user and password getting before.

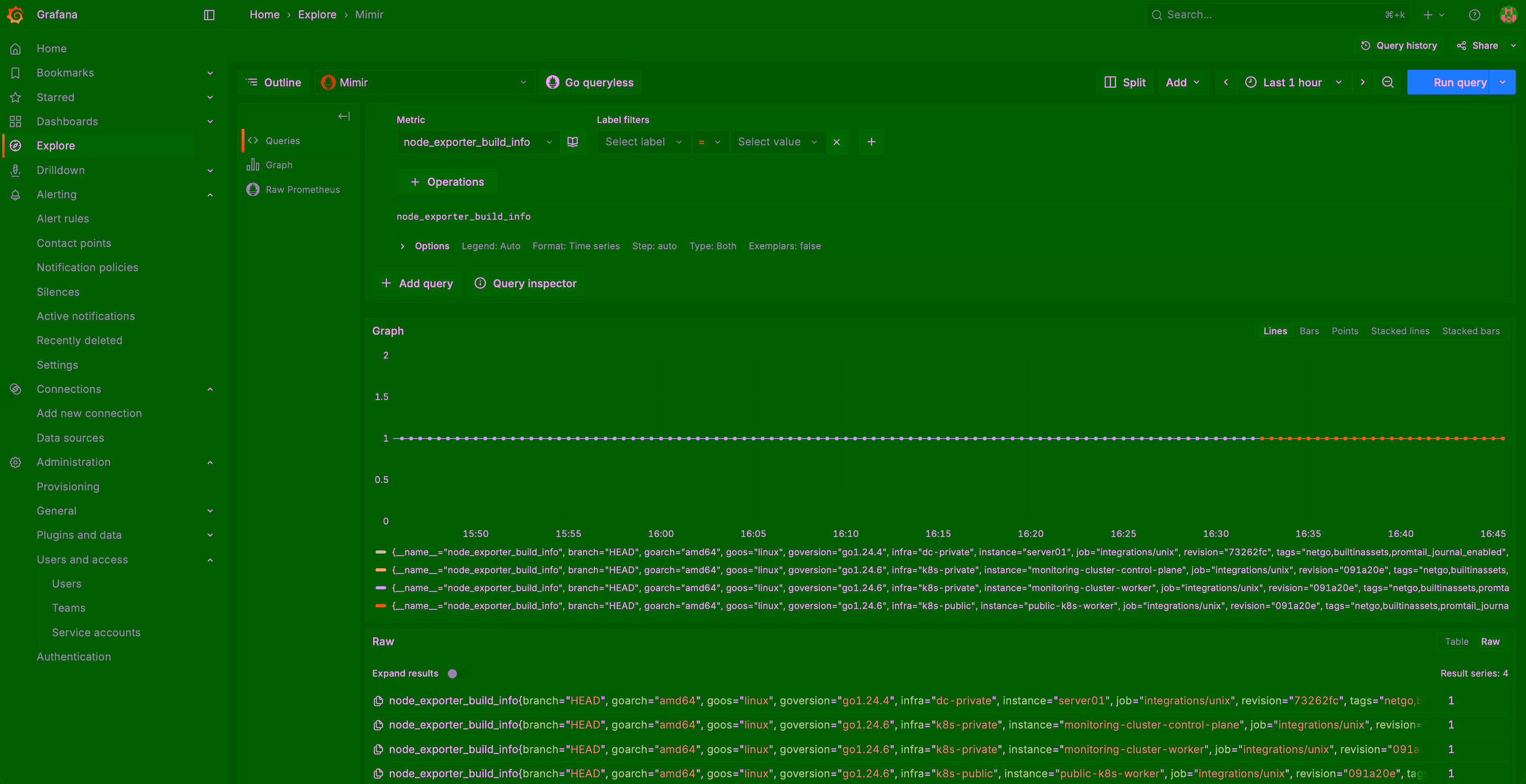

After this, we can check if the data are in successfully stored in Grafana Mimir. From Grafana Dashboard click in Explore, select the node_exporter_build_info query and select Run query:

Node Exporter Grafana Query

Conclusion

In this guide, we demonstrated how n2x.io, integrated with Grafana Mimir and Grafana Alloy, provides a scalable, centralized architecture for collecting and analyzing metrics. By bridging physical servers and Kubernetes clusters across both private and public environments, this unified telemetry and networking setup empowers operations teams with a consistent and reliable observability layer.

This approach reduces the overhead of managing fragmented systems, simplifies troubleshooting, and ensures cohesive visibility across distributed infrastructure. For teams operating in complex, multi-site environments, it offers a solid foundation for building efficient, resilient monitoring pipelines.

To dive deeper into the challenges of fragmented tooling and the benefits of a unified observability strategy, we recommend reading Observability Tools as Data Silos of Troubleshooting.
